the Standard
EV Charger Foundation Base
- Universal Adapter Plate — SMC composite material, independently tested and ANSI Tier 15 rated, with a slip-resistant surface. Compatible with virtually any L2 charger pedestal.
- Future-Proof Design — The foundation can be installed in a passive state with the adapter plate undrilled, allowing sites to be roughed in before a charger is specified or procurement is finalized. When ready, drill the plate to match your pedestal’s bolt pattern and mount.
- Pre-Engineered Stability Calculations — Project-specific submittal packages available via BaseLogic EV, covering wind, seismic, and soil parameters.
- Reduced Installation Time — No concrete pours, no formwork, no curing time. Set the block and backfill. Significantly faster than cast-in-place foundations.
- All-Weather Installation — No temperature or weather constraints.
- Nationally Consistent Supply — Produced by NPCA-certified precast facilities across the US.
Technical Information
Length
22 in
Plate Weight
18 lbs
Width
22 in
Block Weight
650 lbs
Height
24 in
Total Weight
668 lbs

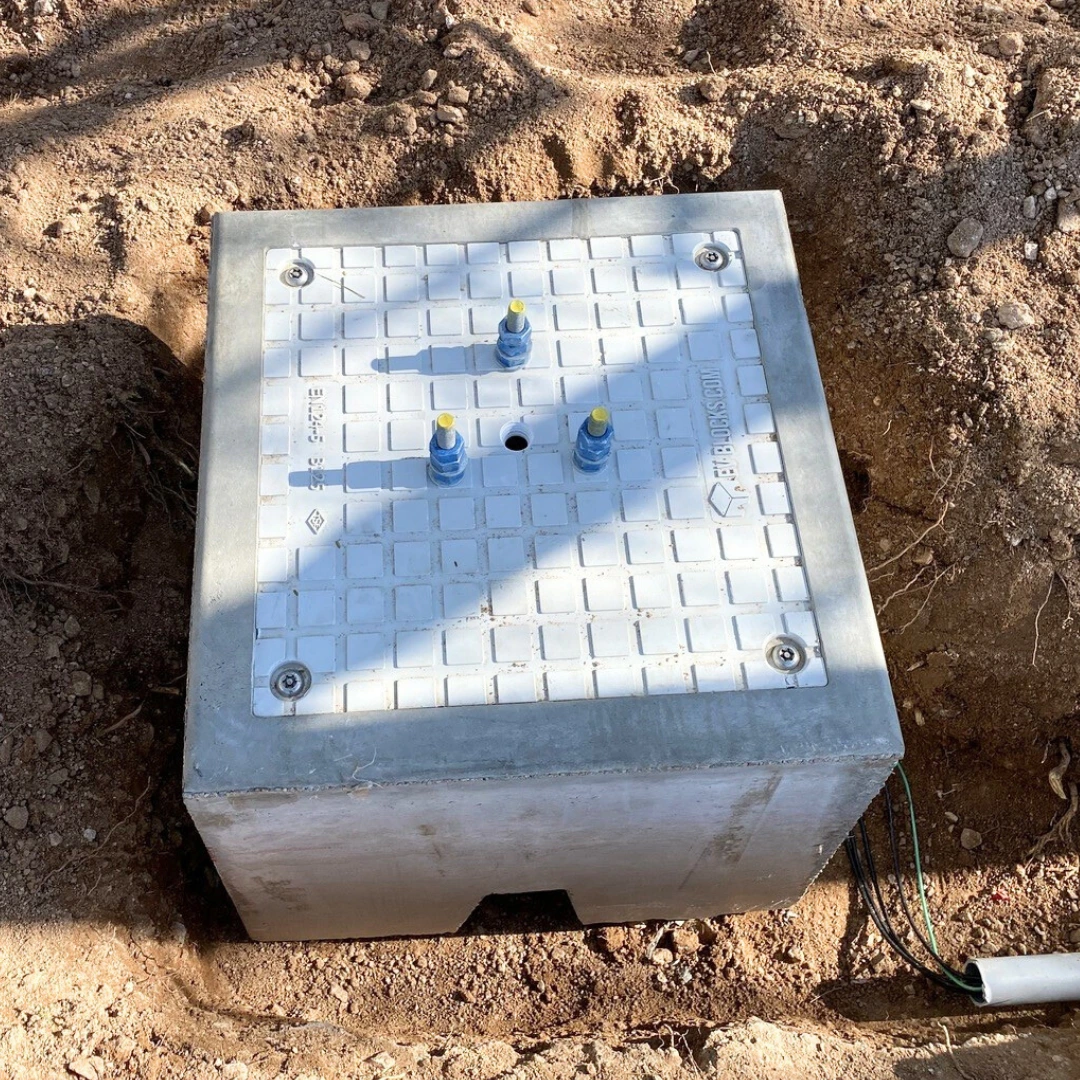

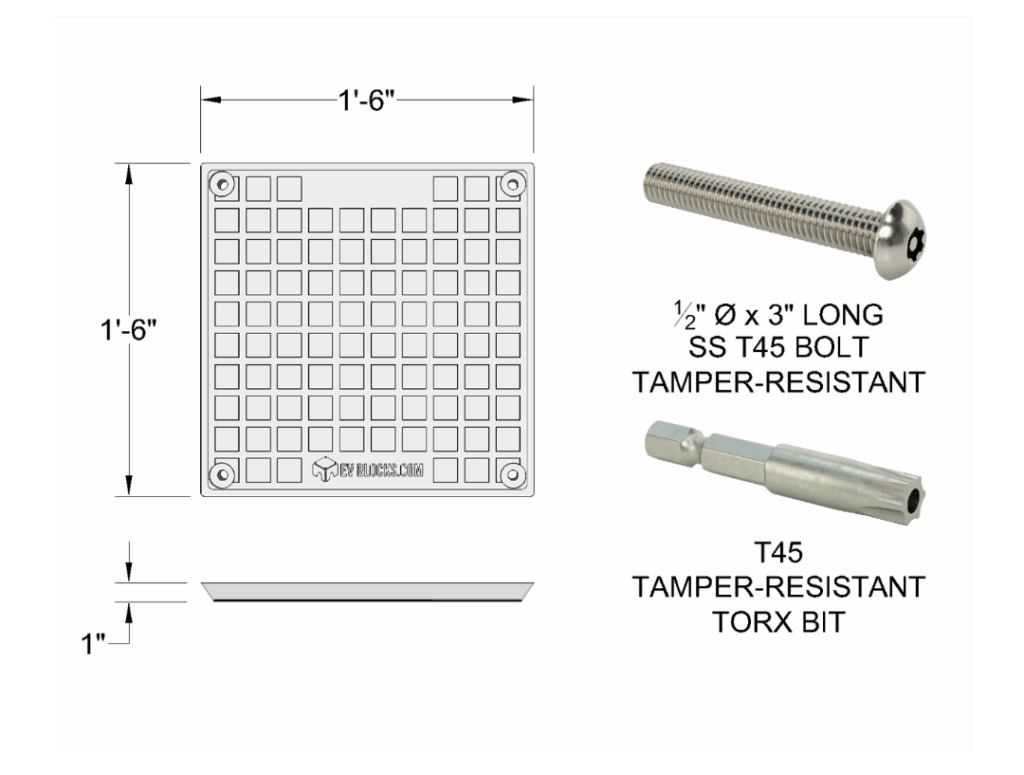

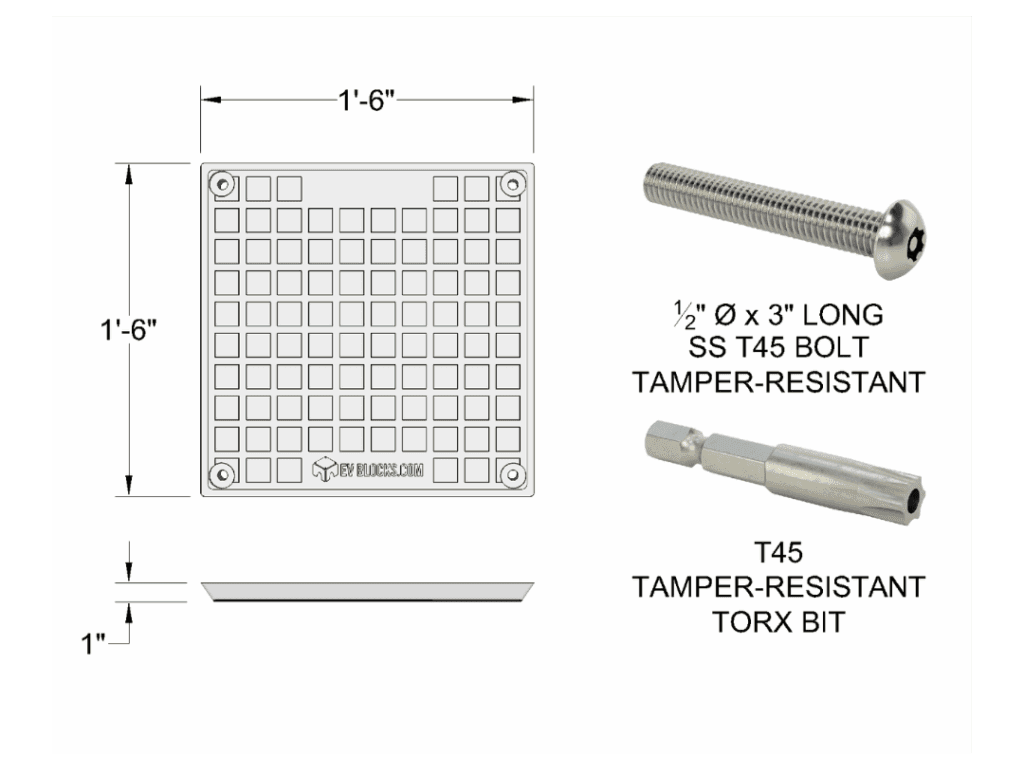

EV Blocks Adaptor Plate
The Standard ships with an SMC composite universal adapter plate — ANSI Tier 15 rated, slip-resistant, and tamper-resistant. Compatible with virtually any L2 charger pedestal.

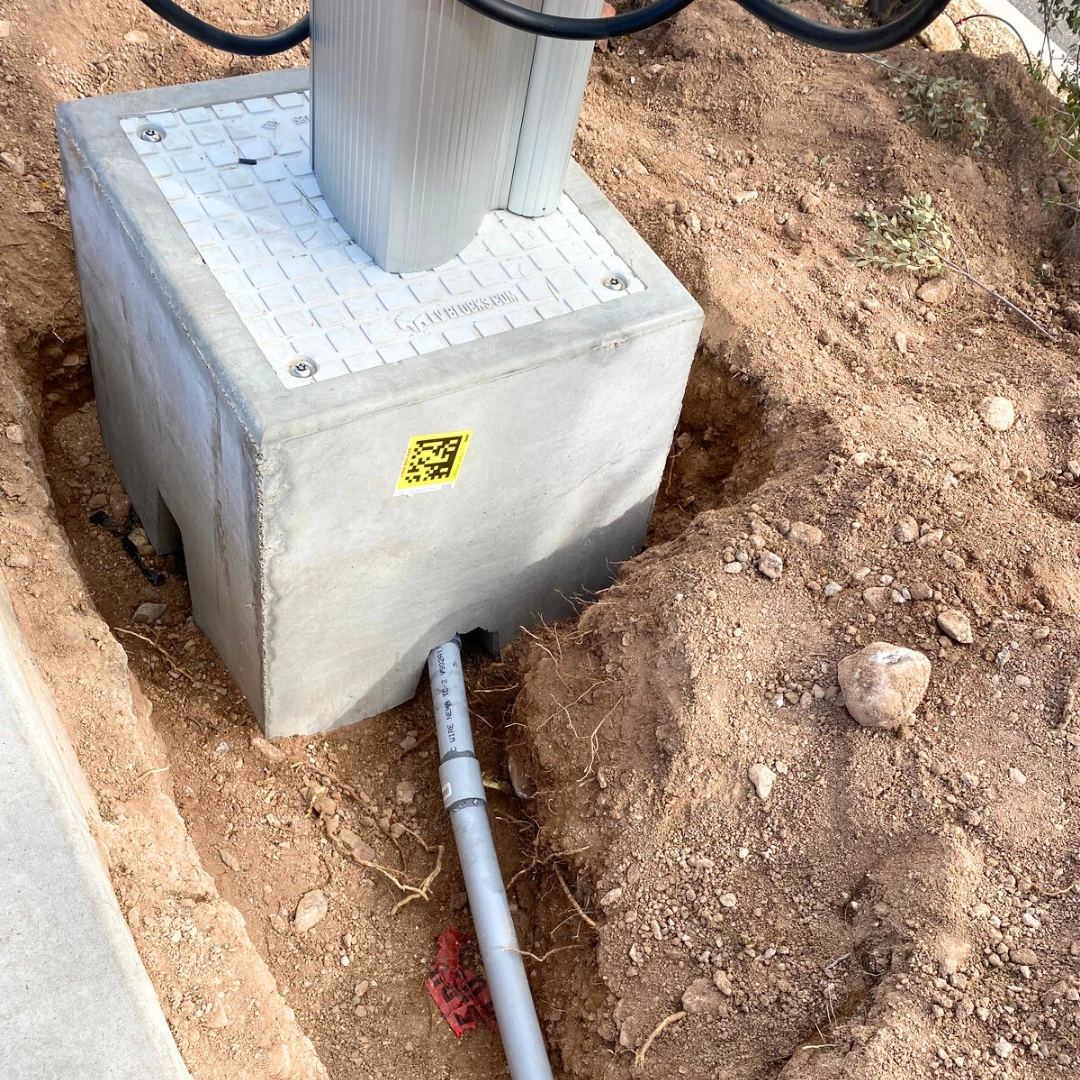

Install the block before the charger is selected. When you’re ready to mount, drill the plate to match your pedestal’s bolt pattern, through-bolt the charger, and run your cables through the conduit opening. No additional foundation work required.
Dimensions
