The Compact
Lightweight EV Charger Foundation Base
- Lightweight Design — Reduced footprint and weight make The Compact ideal for tighter sites and configurations where larger foundations aren’t practical.
- Universal Pedestal Compatibility — The recess in the top of the block accepts a number of widely available pedestals on the market.
- Multiple Conduit Entry Points — Two side openings and an enlarged bottom entry support virtually any conduit configuration.
- Future-Proof Design — Install with the cover plate in place before the charger is specified. When ready, swap the cover for your pedestal, and mount.
- Pre-Engineered Stability Calculations — Project-specific submittal packages available via BaseLogic EV, covering wind, seismic, and soil parameters.

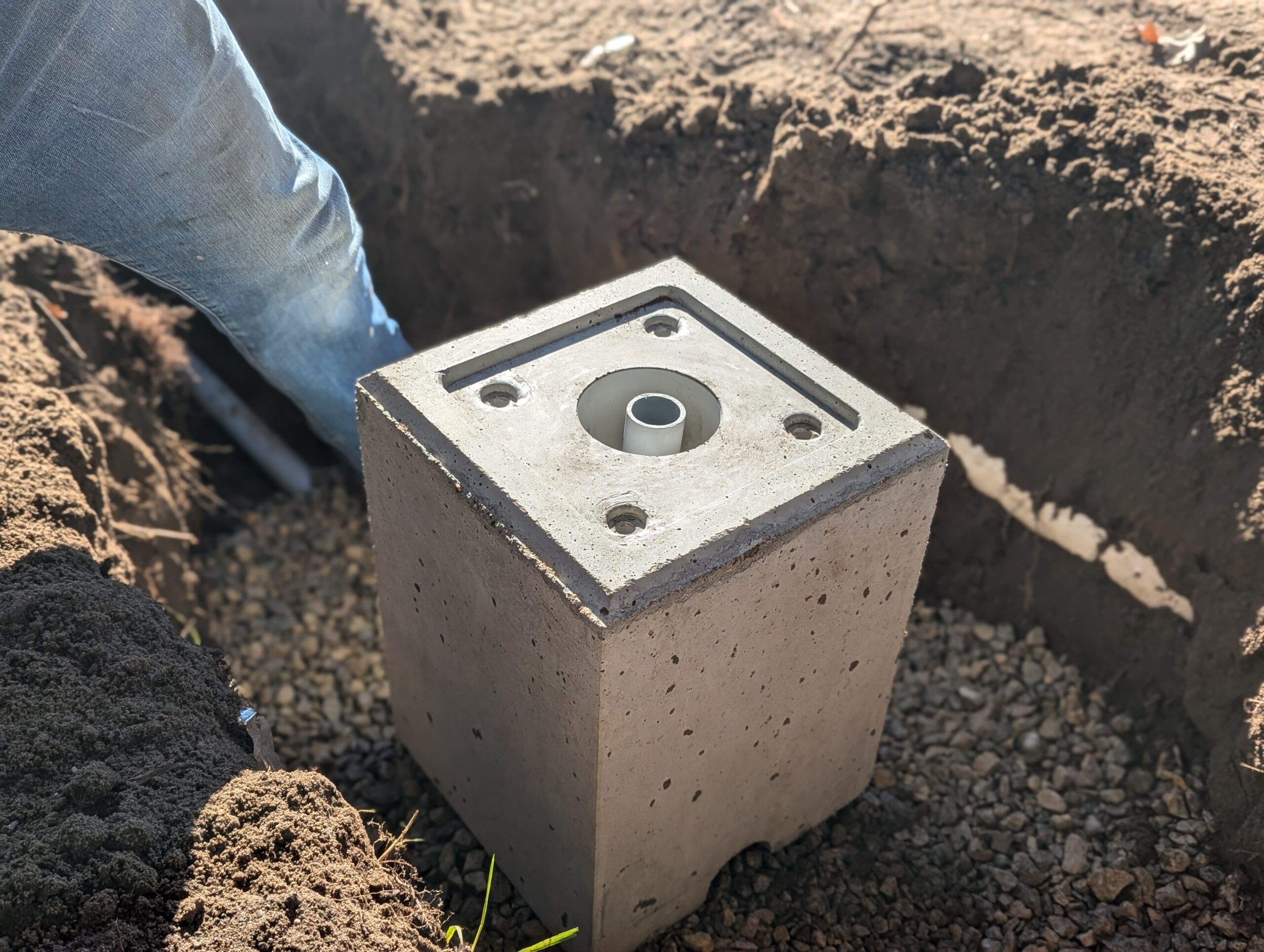

- Reduced Installation Time — No concrete pours, no formwork, no curing time. Set the block and backfill. Significantly faster than cast-in-place foundations.
- All-Weather Installation — No temperature or weather constraints.
- Nationally Consistent Supply — Produced by NPCA-certified precast facilities across the US.
Technical Information
Length
Plate Weight
Width
Block Weight
Height
Total Weight
EV Block Compact Pedestal Pairings
The Compact is designed to work with a growing range of pedestal configurations, giving installers the flexibility to match their charger hardware and site requirements.
Stock Configuration

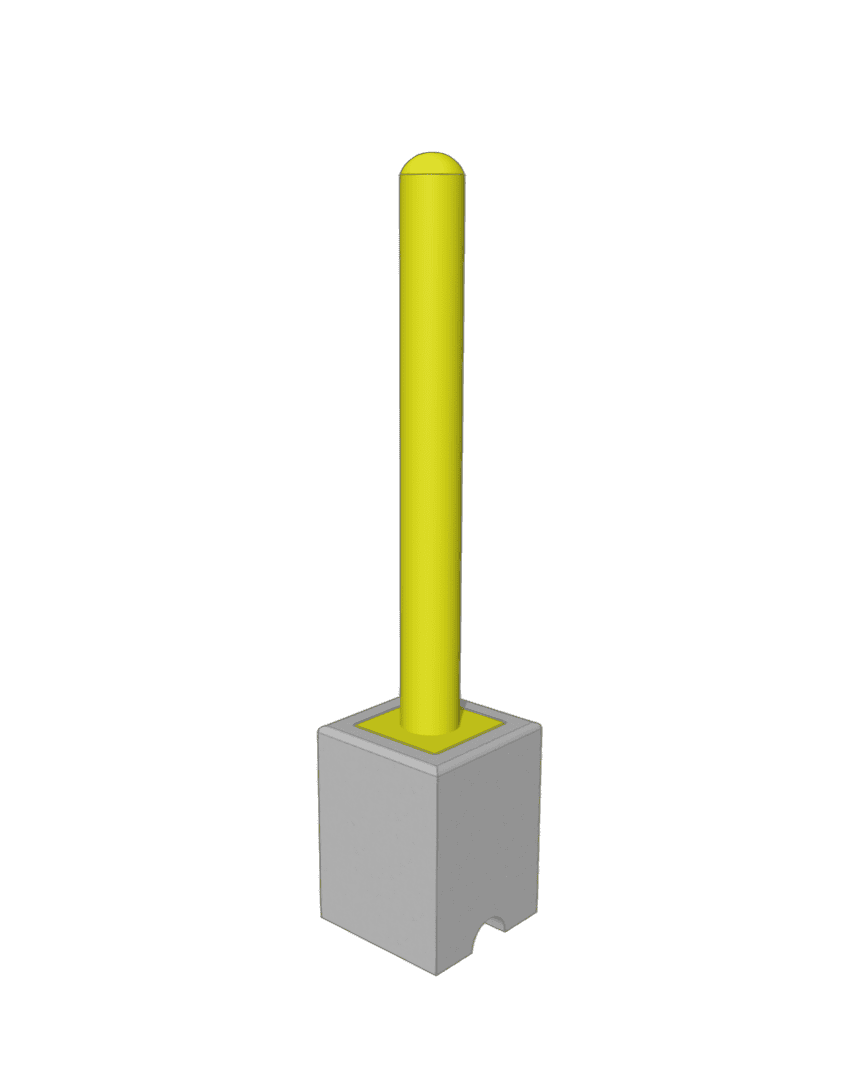

The Compact’s standard recess accepts pedestals with a base plate similar in size to the WiLLev Universal Pedestal — including the Uline surface mount visual bollard and other compatible options. The WiLLev itself accepts nearly all wall and pedestal mount chargers.

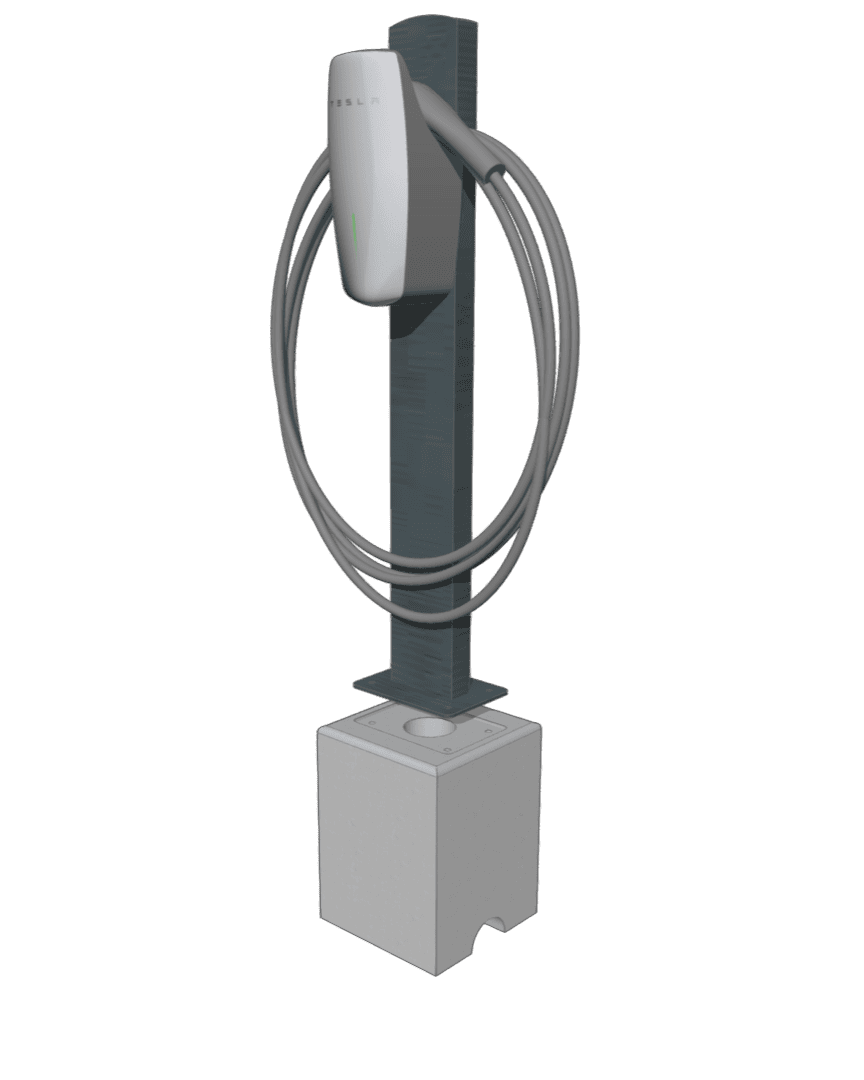

Tesla Commercial Pedestal
A custom upper recess and pre-located anchor points deliver a flush-mounted installation for Tesla Gen 3 and Gen 2 Universal Wall Connectors. Supports single or dual mount configurations.
Custom configurations available by request. Contact us to discuss your project requirements.
Dimensions
