B600
EV Charger Installation Base

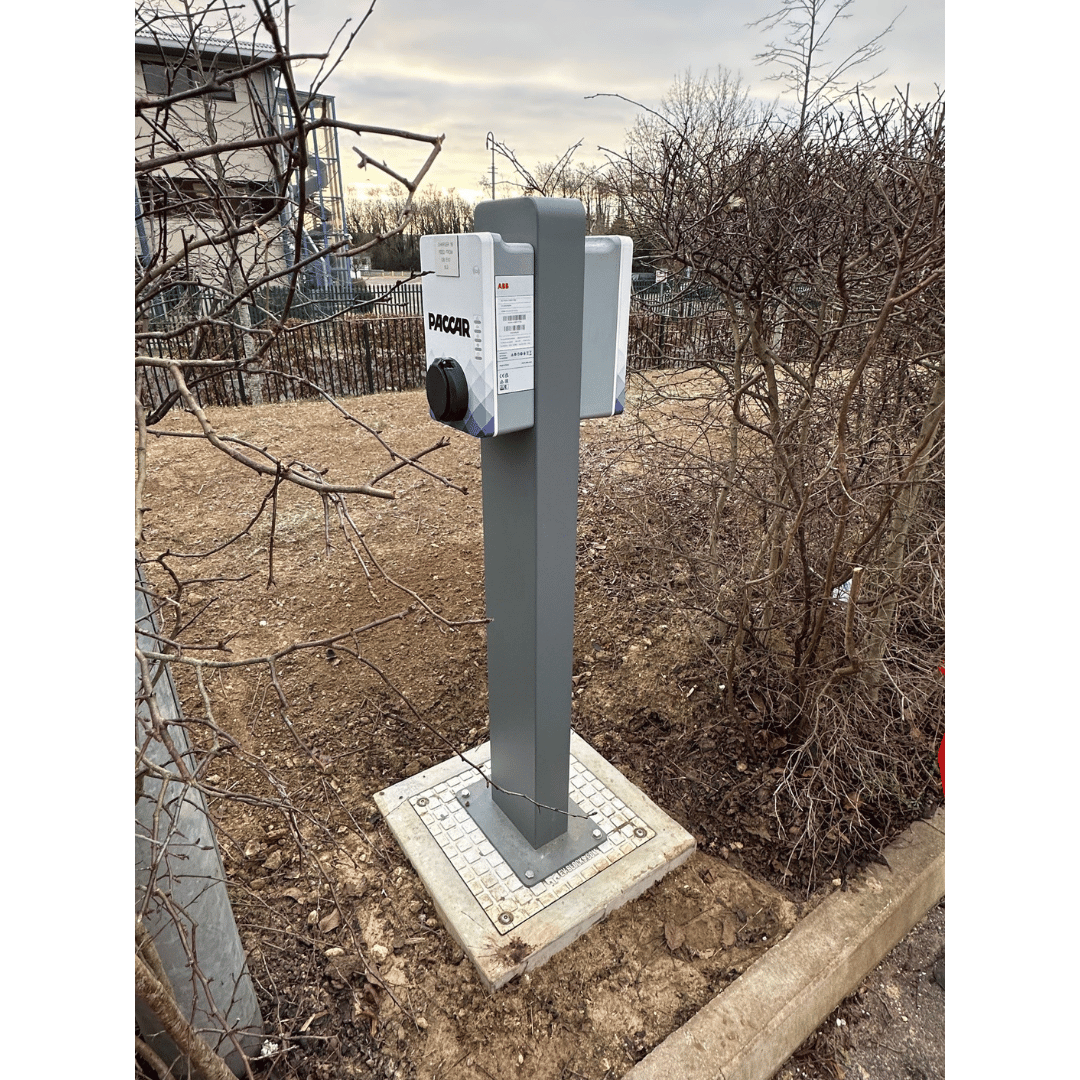

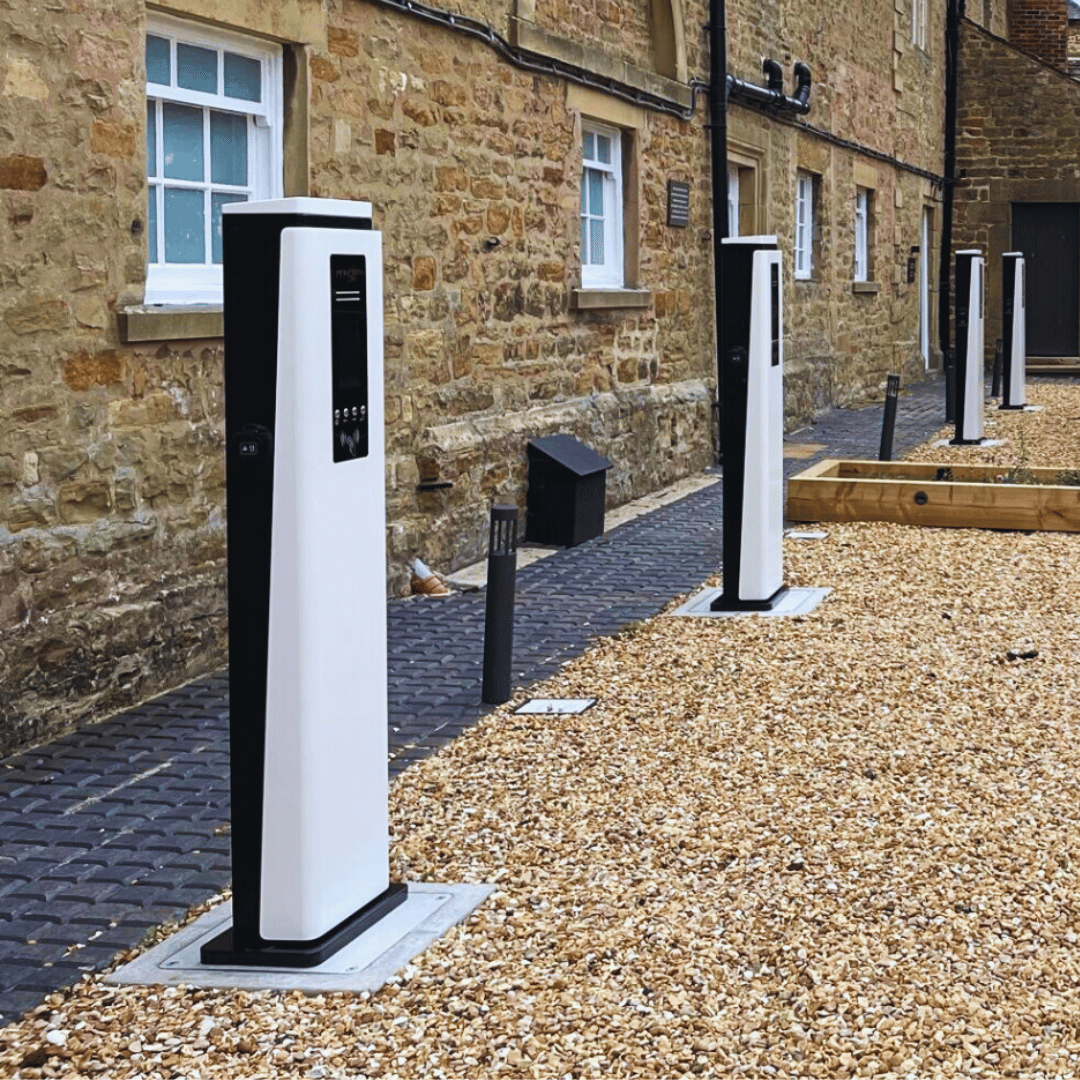

- The B600 is a precast concrete EV charger base for EV charging stations.
- Containing four entry points for ducting to allow for a flexible and uniformed appearance.
- Includes a universal adaptor plate for future EV charger updates.
- Load bearing capacity of 12.5 Tons
- Ideal for small infrastructure projects
- 35% Reduced carbon
- 100% Recyclable product.
Technical Information
Length
600MM
Width
600MM
Height
400MM
Block Weight
184KG
Plate Weight
8KG
Total Weight
192KG
EV blocks ADAPTOR PLATE

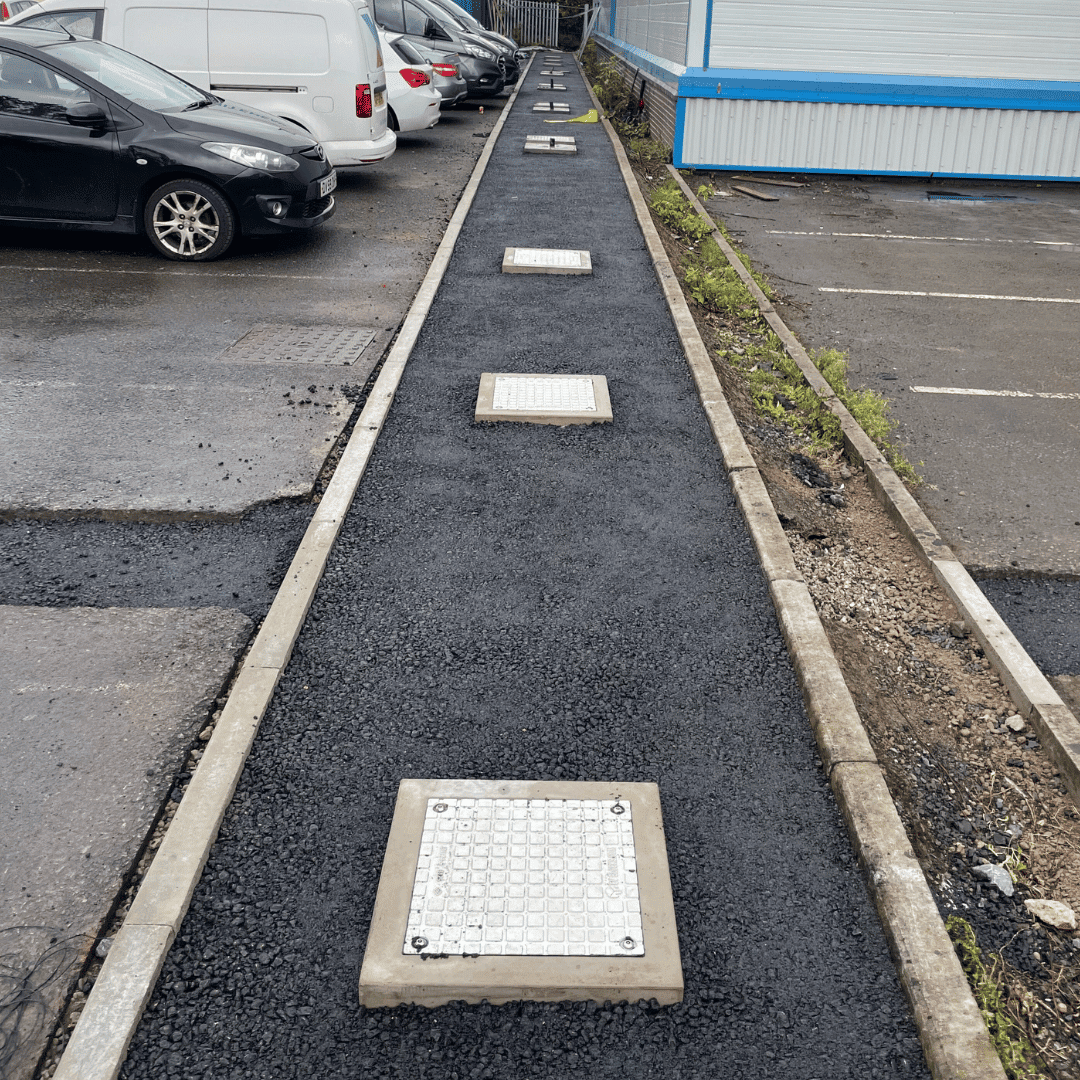

Our adaptor plates have a slip resistant surface. This makes the product ideal for installing additional EV charger foundations at relatively low cost as the EV Blocks® can be installed in a passive state until cabling and additional infrastructure is required, future-proofing sites.

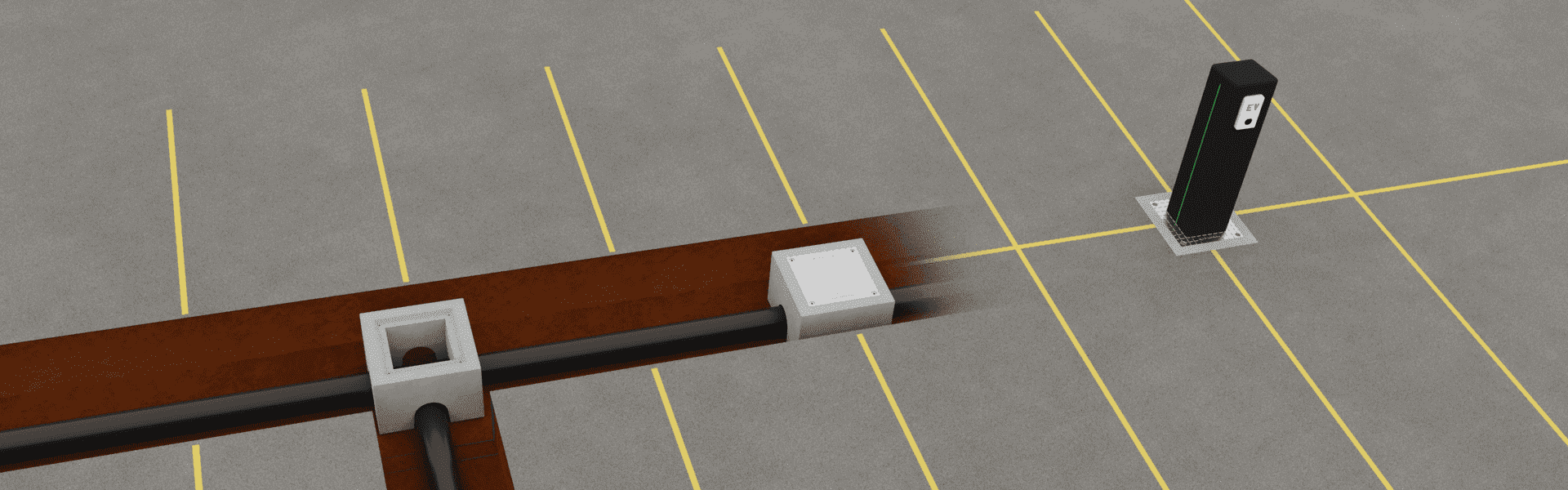

The universal adaptor plate allows the below ground infrastructure to be installed before the EV charger has been specified or selected,future-proofing your project.
Our engineered solution ensures a uniform finish every time. EV Blocks® can be installed in any weather conditions, reducing time and lost productivity.
